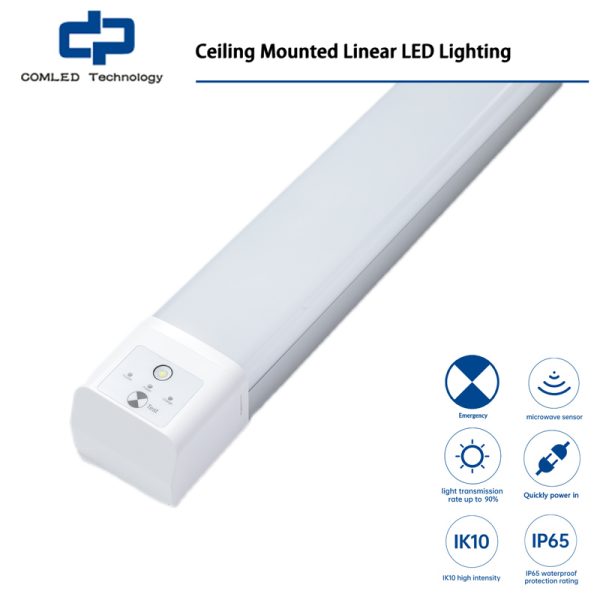

Ceiling Mounted Linear LED Lighting, Parking Lots Linear Light
Ceiling Mounted Linear LED Lighting, 3000K/4000K/5000K/6500K, 110LM/W-130LM/W, IP65 IK10, CE SAA and C-Tick Certificate, For School, Workshops, Warehouses, Tunnel, Office Passage and Other Basements
- Description
- Additional information
- Inquiry
Description
Ceiling Mounted Linear LED Lighting, High CRI, Emergency Battery Backup, Sensor Dimming Function, CE SAA and C-Tick Certificate, For Workshops, warehouses, Office Passage and Other Basements
The light combined by a energy-efficient led linear light and a high performance spitfire emergency light. Adopt high transmission anti-UV PC diffuser and high quality Aluminium base. Patented module designed made function parts seperately from each other, easy DIY for different application and later maintainece. With display and remote controller option. It was widely used in school, workshops, warehouses, office passage and Other basements.
What is Ceiling Mounted Linear LED Lighting?
In the world of industrial and commercial lighting the Ceiling Mounted Linear LED Lighting is a must have for visibility and safety in car parks. This lighting fixture is efficient, durable and good looking for all applications. With the emphasis on energy saving and maintenance cost reduction modern lighting has to deliver on performance and longevity. The Ceiling Mounted Linear LED Lighting does just that by combining advanced LED technology with a robust design.
Ceiling Mounted Linear LED Lighting is a type of lighting fixture designed to be mounted on ceilings in a linear configuration. These fixtures are long and linear in shape to provide uniform lighting across large areas. For car parks this type of lighting provides full coverage and minimises dark spots so is safer and reduces the risk of accidents. The LED used in these fixtures is high luminous efficacy, long life and energy efficient so is a cost effective solution for new installs and retrofits.
Features of Ceiling Mounted Linear LED Lighting:
Size: 2FT/4FT/5FT
Rated Power: 18W/36W/44W
Input power Supply: AC200-240V
LED Chips: SMD2835
CCT: 2800-6500K
CRI >80
Luminous Efficacy: 110-130LM/W
Emergency Function(option)
Sensor dimming (option)
Approved by CE SAA and C-Tick (RCM)
Package Dimensions: 620*85*70mm/1220*85*70mm/1520*85*70mm
5 years of Manufacturer’s Warranty
Ceiling Mounted Linear LED Lighting Features Specs
Ceiling Mounted Linear LED Lighting Features Specs
Modular design of function |
Emergency fuction module (option) |
Quick surface mounted installation locker |
Quickly power in |
Sensor dimming (option) |
With dispaly panel(option) |
High Brightness LED Chips |
high transmission |
IP65 waterproof protection rating |
IK10 High level of protection |
safety certificate |
Modular design of function
Multi-function modules designed, easy DIY for different demands.These modules provide flexibility and convenience, allowing users to customize and adjust lighting settings according to their specific needs and preferences.
Emergency fuction module (option)
Emergency available with self-test and self-check (option)
This feature is available with optional self-test and self-check functions, ensuring that the emergency lighting system remains operational when needed. The emergency self-test feature periodically runs diagnostics on the light to verify its functionality.

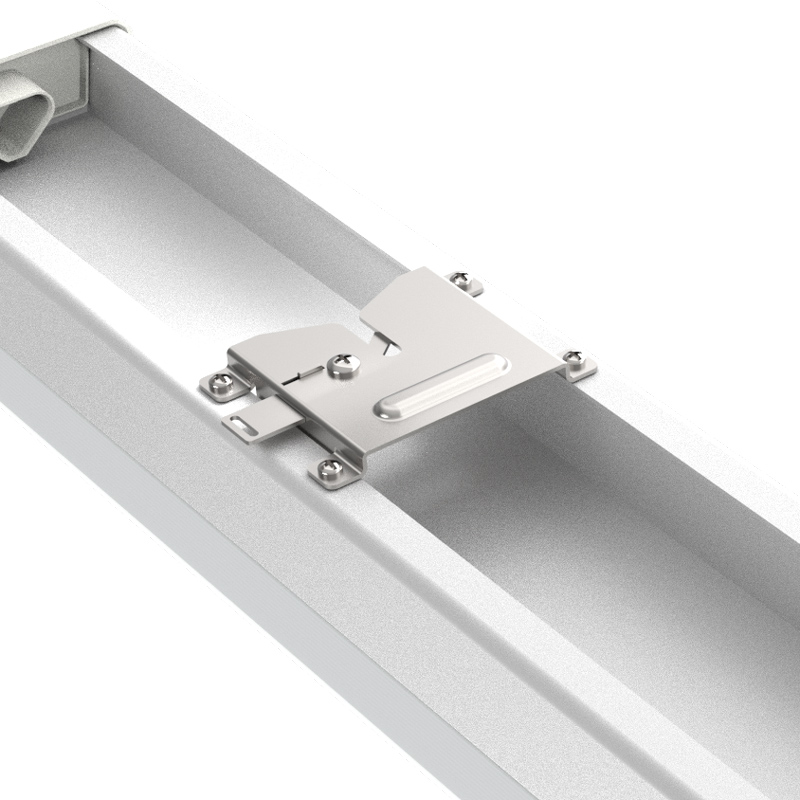

Quick surface mounted installation locker
Quick locker for surface mounted installation (option)
This Ceiling Mounted Linear LED Lighting come with a quick locker feature for surface-mounted installation (optional). This quick locker system simplifies the installation process, ensuring that the LED linears can be securely and swiftly mounted onto any surface.

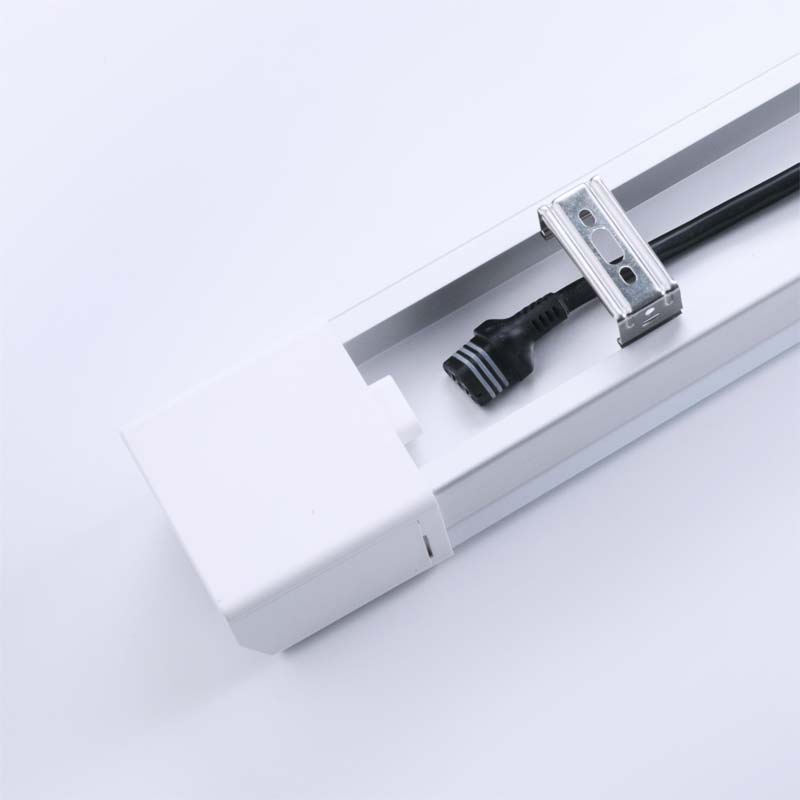

Quickly power in
Quick connect socket designed for POWER IN
This Smart LED linear Light features an innovative quick connect socket design for POWER IN connections, making installation easier, faster, and safer. This user-friendly design ensures secure and stable connections, enhances safety, and reduces installation time. Additionally, the quick connect system facilitates easy maintenance and upgrades.

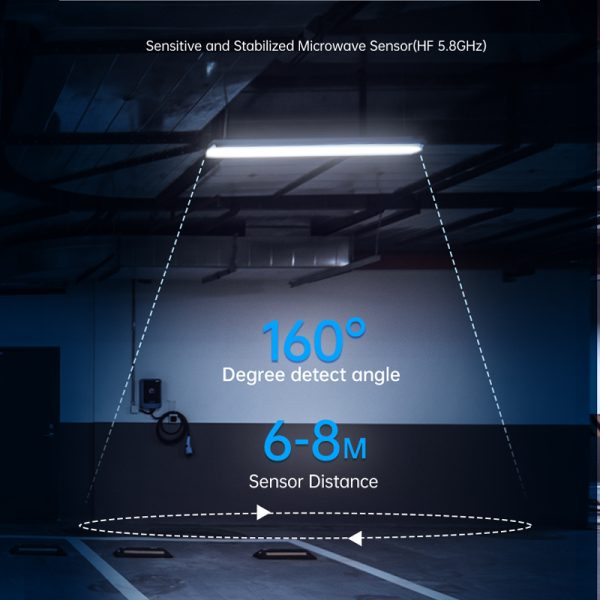

Sensor dimming and remote setting(option)
5.8G HF microwave Sensor dimming function (option)
This Smart LED linear light offers advanced features, including a 5.8G HF microwave sensor dimming function and remote setting capabilities. With sensor dimming and the convenience of remote settings, users can enjoy precise and responsive control over the light’s brightness（100%/ 20%/OFF）, effortlessly managing their lighting environment.

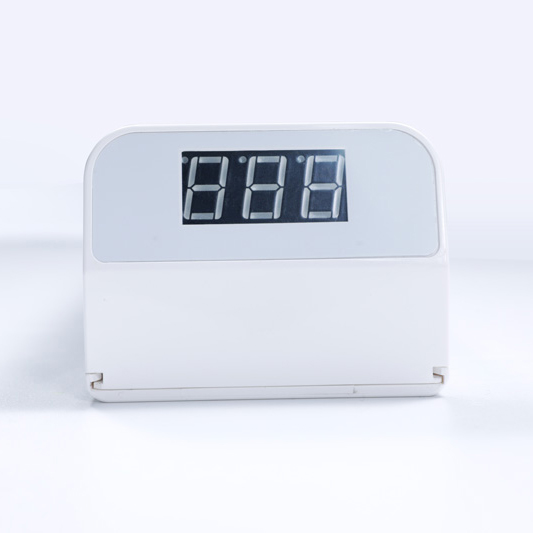

With dispaly panel(option)
This Ceiling Mounted Linear LED Lighting with display panel integrates functions and information on a easy-to-read display, provides real-time information and and enables you to fine-tune the light to operate at its maximum potential. With or without display panel, it all depends on users’ preference and actual applications.
Premium LED Chips
Using 220lm/w SMD2835 chip as light Source(approval by LM-80)
This Smart LED linear light uses professional LED chip, using 220lm/w SMD2835 as light source. LED chip is the core of LED light, it has LM-80 certification LED chip can ensure the high efficiency and stability. Advanced lighting source technology, ensure ultra-bright, ultra-low energy LED linear light, is the best choice for various of applications.

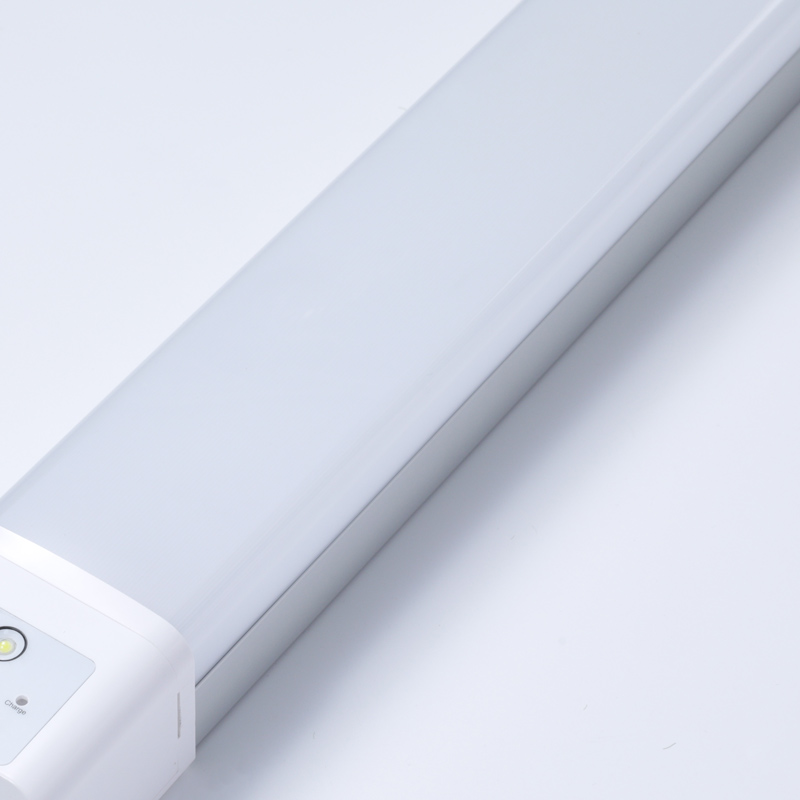

high transmission
Adopt high-grade PC diffuser and Aluminium base, light transmission rate up to 90%
This Ceiling Mounted Linear LED Lighting adopts High grade PC diffuser and aluminum base ensure the light body to be durable and excellent heat radiation. The superior PC diffuser, the light body could reach the transmission rate of 90%, to provide bright and uniform lighting effect.

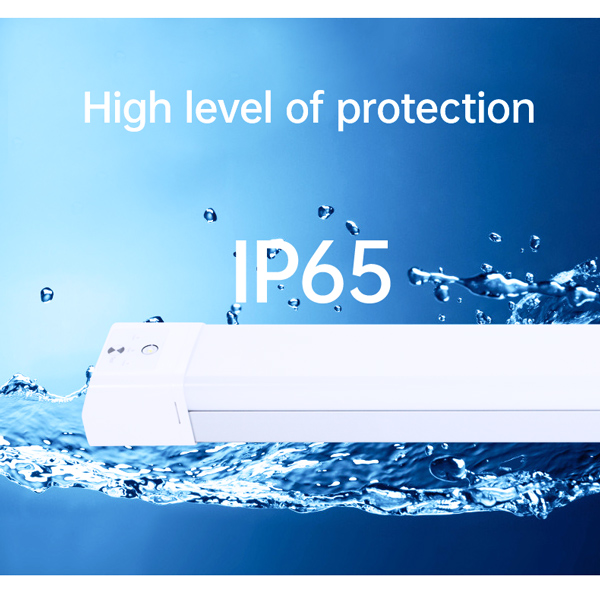

IP65
IP65 waterproof protection rating
This LED Linear Light Fixture, with its IP65 waterproof protection rating, this linear light is safeguarded against dust and water ingress. This makes it an ideal choice for both indoor and outdoor applications, including industrial sites, parking garages, and outdoor corridors, where exposure to moisture and particulate matter is common.

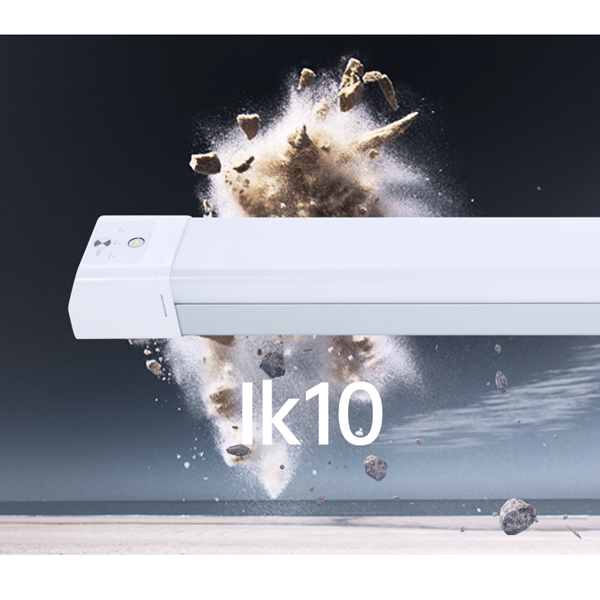

IK10
IK10 IK10 High level of protection
This linear light offers outstanding quality and performance. Featuring an IK10 high impact resistance rating, this durable linear fixture is ideal for use in industrial and commercial settings where maximum impact resistance and long-lasting durability are required.

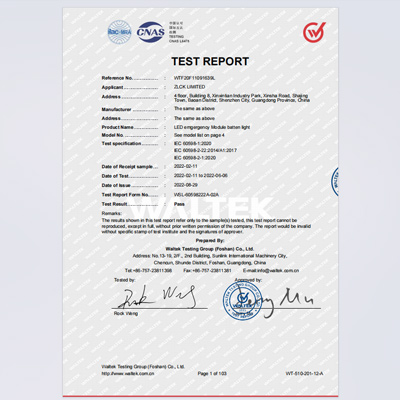

safety certificate
Approved by CE SAA and C-Tick (RCM)
This Ceiling Mounted Linear LED Lighting has already passed CE, SAA and C-Tick (RCM) certification. this means that the this linear light complies with the high quality standards and safety regulations settled by these authorities for the European, Australian and New Zealand markets. those certification are proof of the product’s excellent performance and compliance with the regulations as well as its perfect coherence with the different projects. Customers can be totally assured of the this linear light quality, safety and reliability.
Ceiling Mounted Linear LED Lighting Installation option：

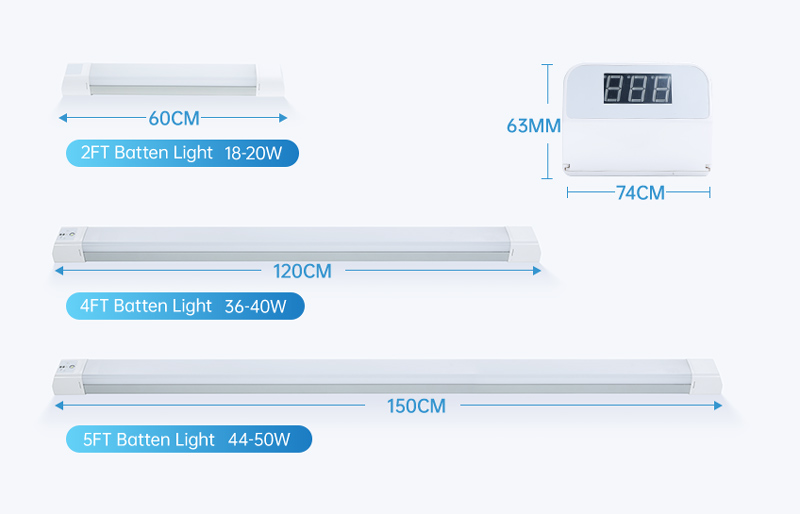

Ceiling Mounted Linear LED Lighting Size:
Ceiling Mounted Linear LED Lighting Package Specification
Every lumianire is packed by PP big for dust-proof and scratch proof.

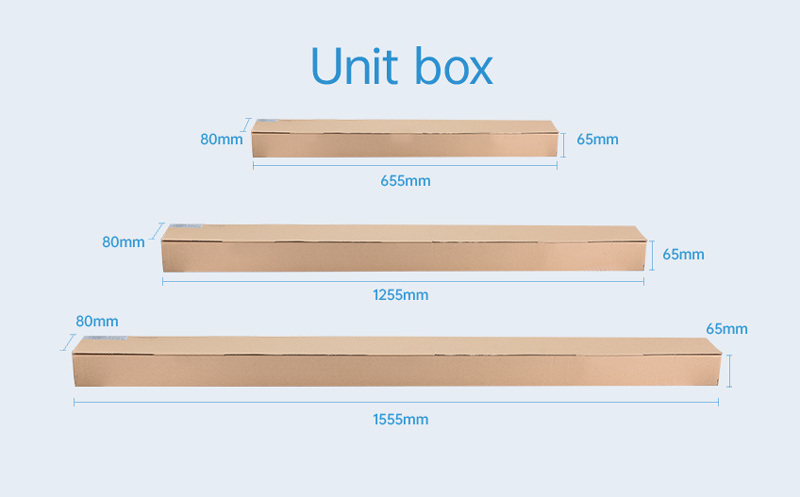

Ceiling Mounted Linear LED Lighting unit-box:

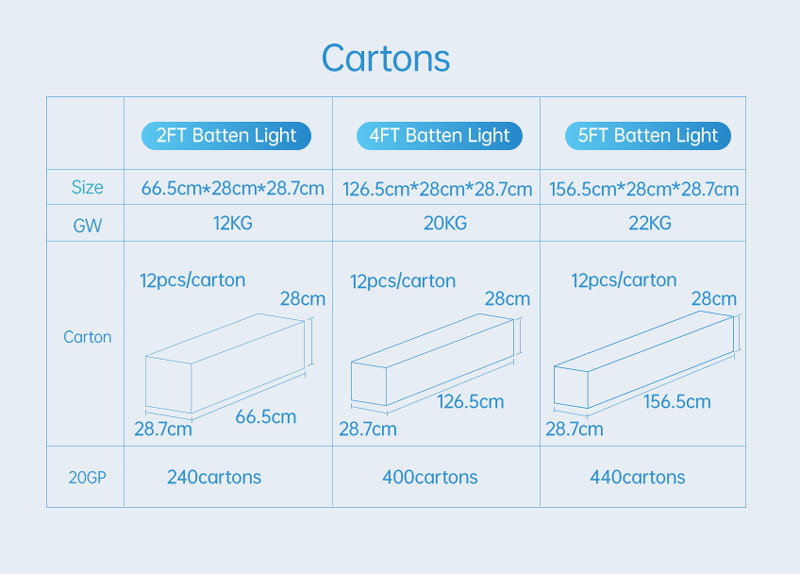

Ceiling Mounted Linear LED Lighting Cartons:
Conclusion
The ceiling mounted design of these linear lights has several advantages. It’s easier to install, keeps the lights out of the way of vehicular movement and looks clean and uncluttered. The linear arrangement also ensures the light is evenly distributed which is critical in car parks where consistent lighting is required for safety and security.
FAQs:
What are the benefits of using Ceiling Mounted Linear LED Lighting in car parks?
Ceiling Mounted Linear LED Lighting has several benefits for car parks. Firstly it provides uniform and consistent lighting, reduces shadows and dark spots that can be a safety risk. Secondly LED is energy efficient so lower electricity bills and reduced environmental impact. Thirdly the lights have long life so less maintenance and replacement costs. The fixture is durable so can withstand harsh environmental conditions making it a reliable solution for outdoor and semi outdoor applications.
How is Ceiling Mounted Linear LED Lighting installed different to other types of lighting?
Ceiling Mounted Linear LED Lighting is easy to install and differs from other types of lighting in the way it’s mounted. These fixtures are designed to be mounted directly onto ceilings which is simpler than recessed or pendant lighting. The linear design allows for easy alignment and spacing so the light is evenly distributed. This type of installation is particularly good for car parks as it keeps the lights out of the way of vehicular movement and reduces the risk of damage.
What to consider when choosing Ceiling Mounted Linear LED Lighting for a parking lot?
When choosing Ceiling Mounted Linear LED Lighting for a parking lot you need to consider a few things. First is the lumen output which determines the brightness and effectiveness of the lighting. You need to choose fixtures with enough lumens to light the whole area. Next is the color temperature of the LED’s which can affect visibility and ambiance. Durability and weather resistance is also important as the fixtures need to withstand all kinds of weather. Finally energy efficiency and maintenance requirements to be considered to be cost effective over the life of the fixture.
Can Ceiling Mounted Linear LED Lights be used for other commercial or industrial applications?
Yes, Ceiling Mounted Linear LED Lights are very versatile and can be used for other commercial and industrial applications beyond parking lots. They are used in warehouses, factories, shopping malls and other big spaces where uniform lighting is required. They are durable and energy efficient so they are perfect for any environment that needs reliable and cost effective lighting.
How does Ceiling Mounted Linear LED Lighting compare to traditional lighting?
Ceiling Mounted Linear LED Lighting is more energy efficient than traditional lighting such as incandescent or fluorescent. LEDs convert more of the energy into visible light so less energy consumption and lower electricity bills. Plus LED’s have a longer life so that reduces the frequency of replacement and maintenance. This makes LED lighting the best for commercial and industrial use.
Additional information
| Model | ZL-MBLP20-2FT/ZL-MBLP18-4FT/ZL-MBLP44-5FT |
|---|---|
| Rated Power | 18W/36W/44W |
| Install | Surface Mount/Hanging/Suspended |
| Protection Rating | IP65 IK10 |
| Housing | Aluminum |
| Optics | PC Milky Diffuser |
| Connection Type | Quick Wiring |
| Operating Temperature | -20℃ to 40℃(Emergency version: 0℃ to 40℃) |
| Warranty | 5 Years |
| Dimming(Option) | Sensor Dimming – 3 Stepped Version(100%-20%-off) |
| Emergency(Option) | 3 Hours+ @3W LiFePO4 Battery |
| Luminous Efficacy | 120-150lm/W |
| LED Chips | SMD2835 |
| CCT | 3000K/4000K/5000K/6500K |
| CRI | >85 |
| Beam Angle | 120 degree |
| Input power Supply | AC200-240V/50-60HZ |
| Power Factor | 0.92 |
| Flicker | No Flicker |
| Lifespan@Ta25°(L70) | 54,000 hours |
| Package Dimensions | 620*85*70mm/1220*85*70mm/1520*85*70mm |
