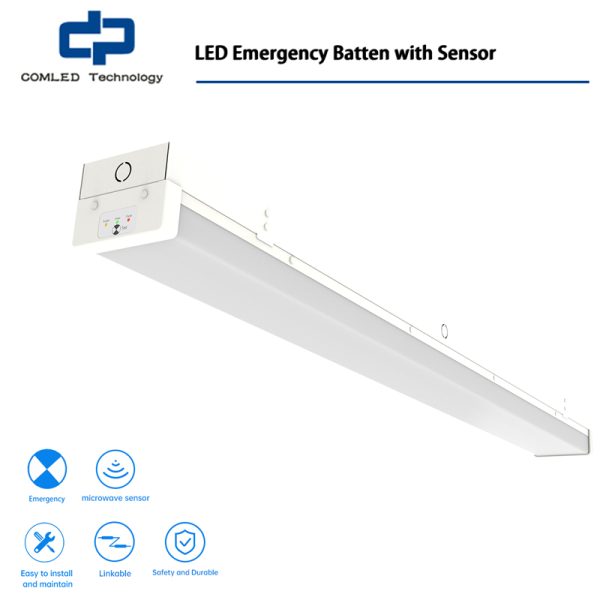

LED Emergency Batten with Sensor, Commercial Low Bay Led Linear Lighting

Description

LED Emergency Batten with Sensor, High Transmittance, Emergency Battery Backup, Sensor Dimming Function, CE SAA and C-Tick Certificate

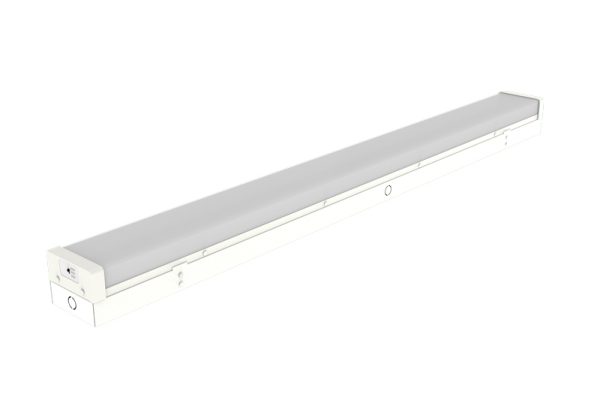

This led smart batten luminaire adopts Stainless steel base and milky PC diffuser housing, integrated the lastest SMD LED technology to achieve higher lumen output and protection rating. It is available in 2FT/4FT/5FT with standard, sensor dimming and emergency version function options. It widely used in tunnel, Rail-way or Metro station, Supermarket, stair well, corridor, evacuation passage especially parking lots, electrical room, ships and other basements.



Features of LED Emergency Batten with Sensor:

Model: ZL-NSBLP20-2FT/ZL-NSBLP40-4FT/ZL-NSBLP60-5FT
Size: 2FT/4FT/5FT
Rated Power: 18W/36W/44W
Input power Supply: AC200-240V, 50/60Hz
LED Chips: SMD2835

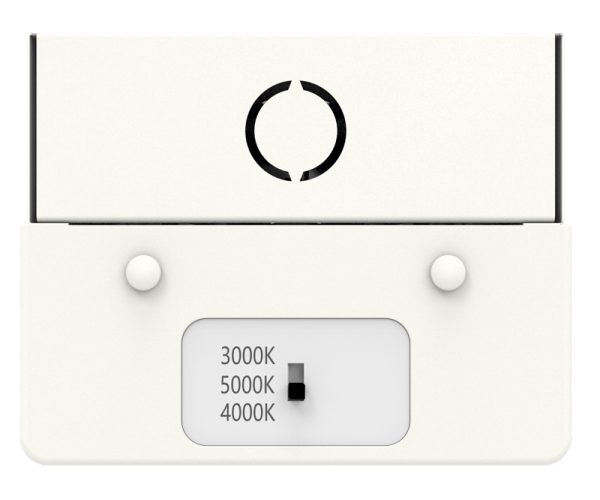

CCT: 3000K/4000K/5000K/6000K
CRI >80
Luminous Efficacy: 110-140LM/W
Emergency Function(option)
Sensor dimming (option)
Approved by CE SAA and C-Tick (RCM)
Package Dimensions: 646*116*96mm/1256*116*96mm/1556*116*96mm



LED Emergency Batten with Sensor Features Specs

Safety and Durable	High Transmission	Easy Installation
Sensor Dimming Function(option)	Emergency fuction module (option)	High Brightness LED Chips
IP20 Waterproof Rating	Linkable Connection Wiring(option)	Surface Mount
Wall Mount	Energy Saving





Features:

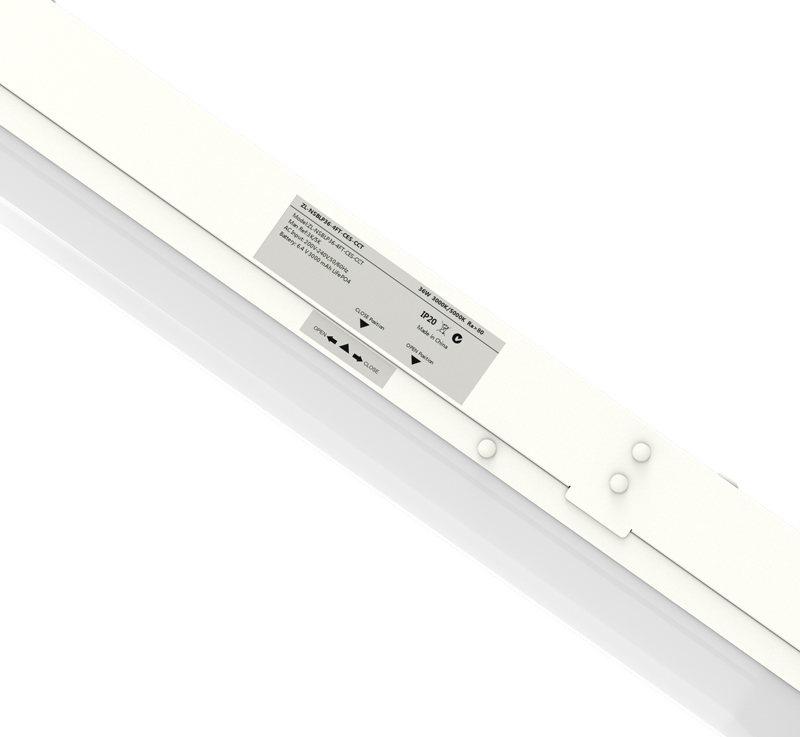

◆ Stainless steel base and PC diffuser IP20 Rated.

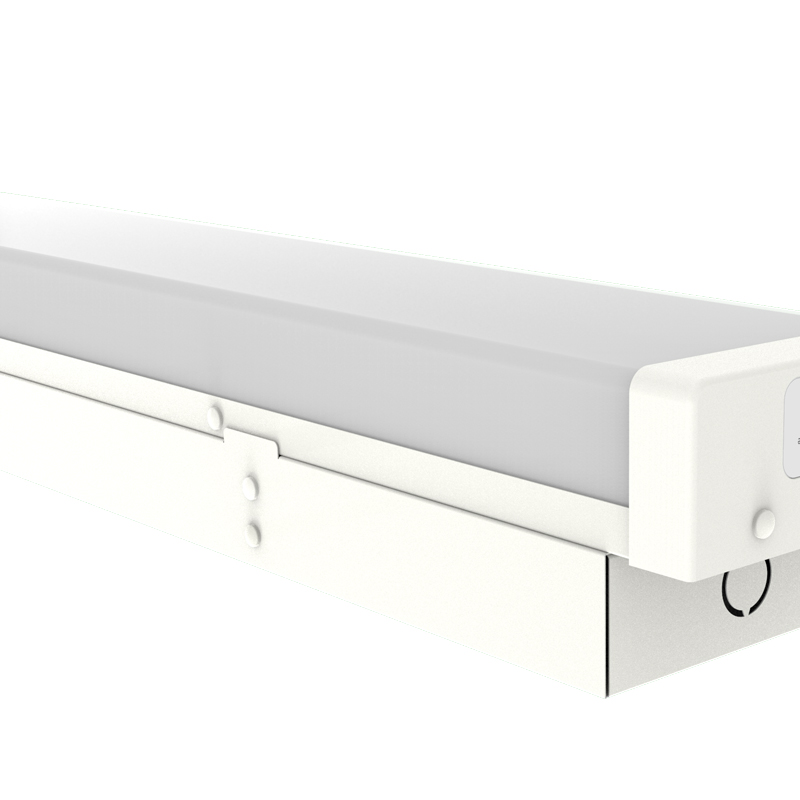

◆ High transmittance(88%) PC diffuser.

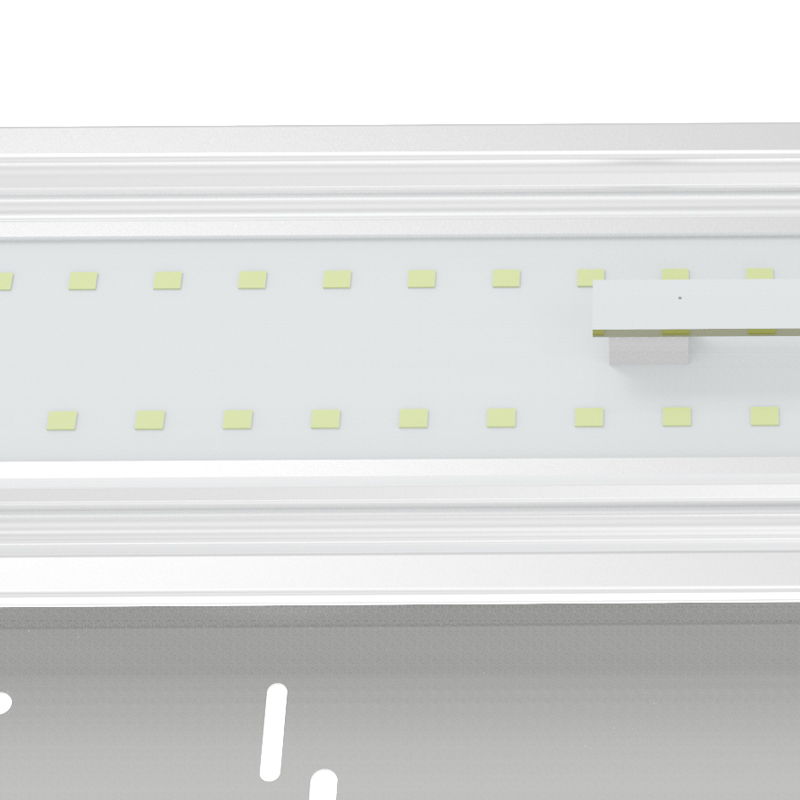

◆ High Brightness SMD2835 LED chip as light source (approval by LM80).
◆ Huge terminal block for easy wiring.

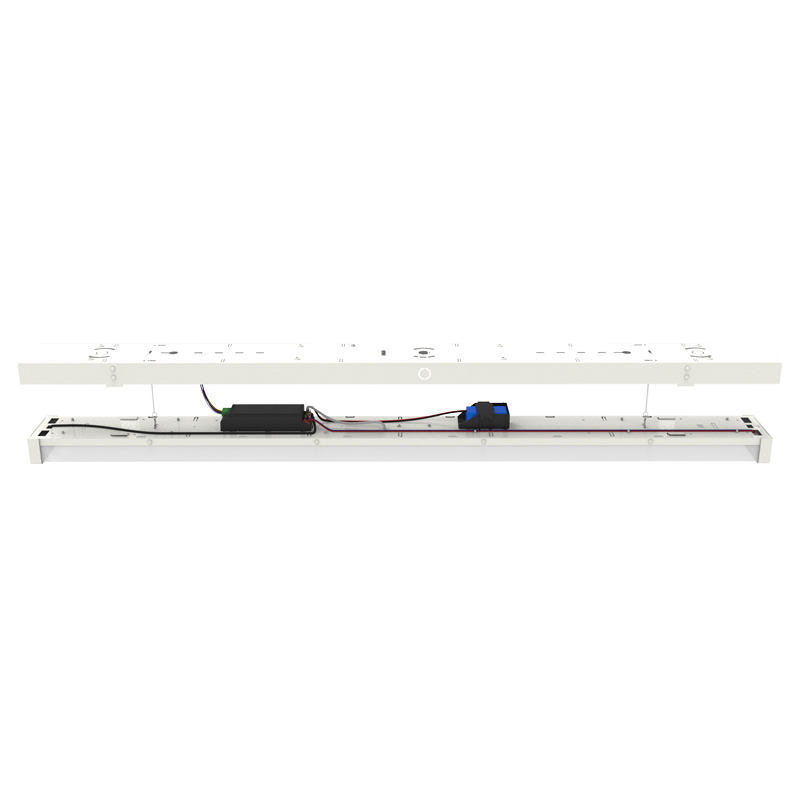

◆ Side patented fixing structural design, easy for on site installation.
◆ Split type power supply design, easy maintenance without switch power off on site.
◆ Clip-fixed Driver for easy replacement and maintenance.
◆ 5.8G HF Sensor dimming function (option).

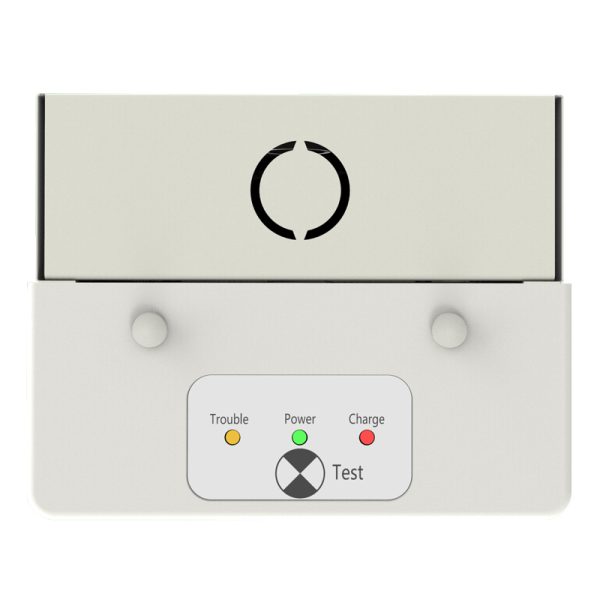

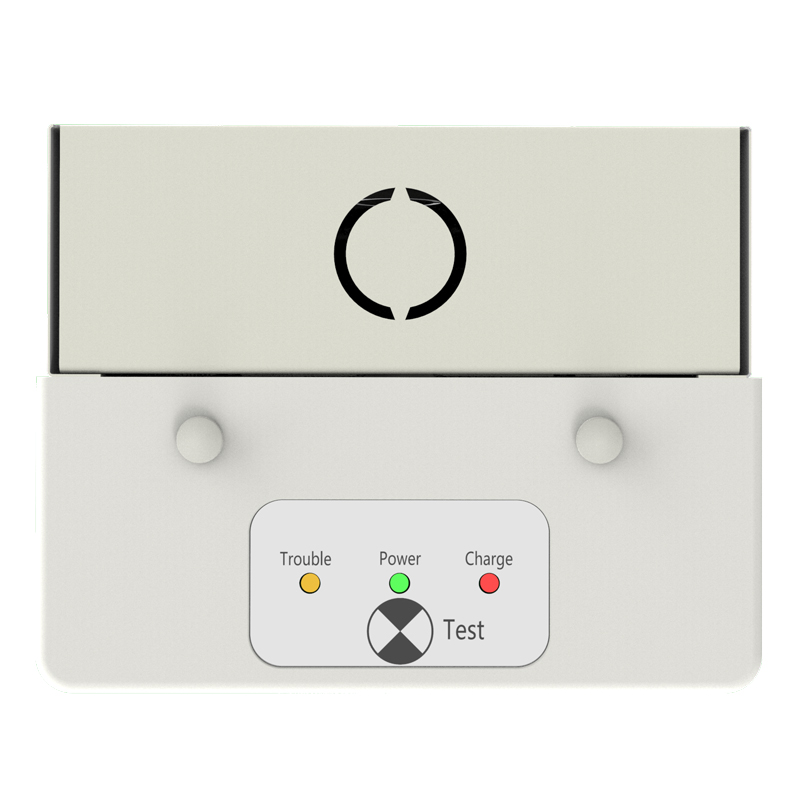

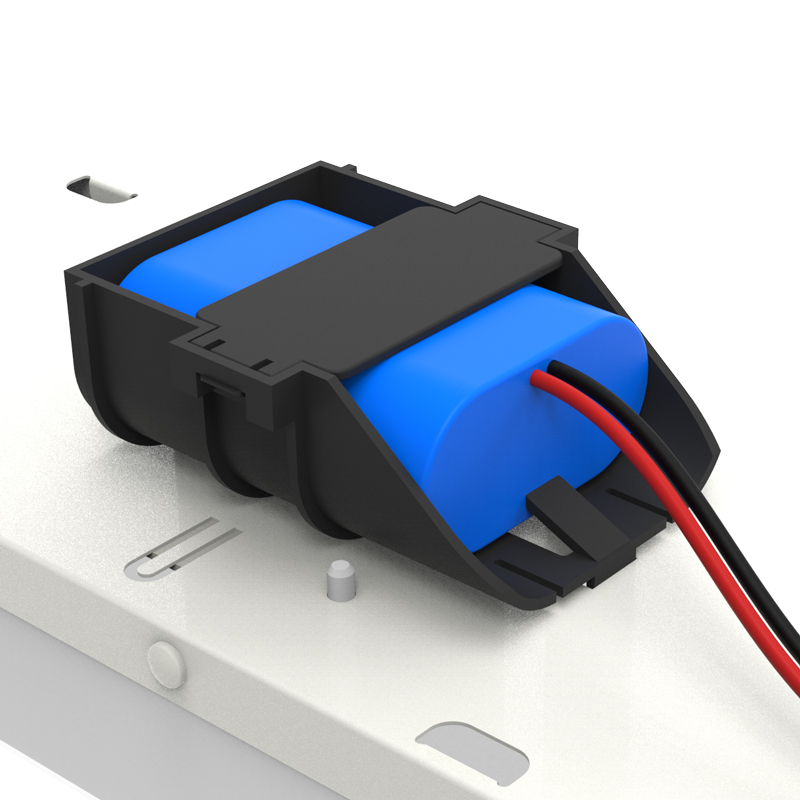

◆ Emergency function with self-test, quick battery maintenance(option).

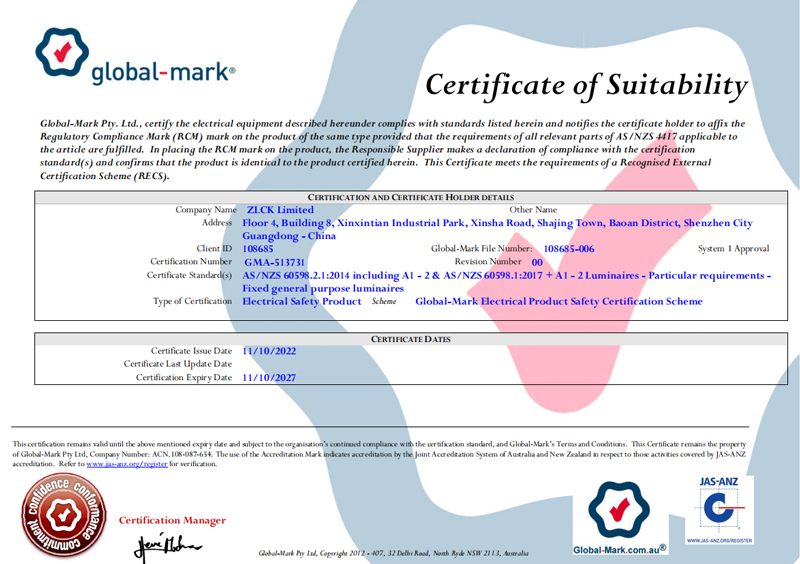

◆ Approved by CE SAA and C-Tick.
◆ Surface mounted or hanging installation options.



PARAMETER DATA

Model	Input voltage	Watt	Sensor Dimming standby	Emergency
ZL-NSBLP20-2FT-CN	AC110V or 230V	18w	x	x
ZL-NSBLP40-4FT-CN	AC110V or 230V	36w	x	x
ZL-NSBLP60-5FT-CN	AC110V or 230V	44w	x	x
ZL-NSBLP20-2FT-CS	AC110V or 230V	18w	100% / 20% /OFF	x
ZL-NSBLP40-4FT-CS	AC110V or 230V	36w	100% / 20% /OFF	x
ZL-NSBLP60-5FT-CS	AC110V or 230V	44w	100% / 20% /OFF	x
ZL-NSBLP20-2FT-CE	AC110V or 230V	18w	x	>[email protected]
ZL-NSBLP40-4FT-CE	AC110V or 230V	36w	x	>[email protected]
ZL-NSBLP60-5FT-CE	AC110V or 230V	44w	x	>[email protected]
ZL-NSBLP20-2FT-CES	AC110V or 230V	18w	100% / 20% /OFF	>[email protected]
ZL-NSBLP40-4FT-CES	AC110V or 230V	36w	100% / 20% /OFF	>[email protected]
ZL-NSBLP60-5FT-CES	AC110V or 230V	44w	100% / 20% /OFF	>[email protected]
Note:  x –No this function



LED Emergency Batten with Sensor Application



LED Emergency Batten with Sensor is suitable for various indoor or outdoor scenarios:

These LED batten lights are universal lighting solutions for a variety of environments, from tunnels and train or subway stations to supermarkets, stairwells, corridors, evacuation passages, parking lots, ship electrical rooms, and all underground areas. These fixtures are designed to be robust and efficient, ensuring better visibility and safety in these spaces.

LED batten lights are also ideal for tunnels and transportation hubs, as they provide clear, shadow-free illumination that aids in traffic and allows people to see their surroundings. They create a welcoming atmosphere in supermarkets and commercial settings by effectively lighting up various aisles and checkout areas. Additionally, they are suitable for emergency-use locations, such as evacuation routes and stairways, offering reliable lighting to ensure residents’ safety.

Their adaptability makes them a perfect choice for parking lots and outdoor spaces, with weatherproof features ensuring durability and performance. Furthermore, in areas like electrical rooms and basements, LED batten lights effectively illuminate maintenance and operational tasks. Overall, their efficiency and versatility make them a top choice for a wide range of applications.

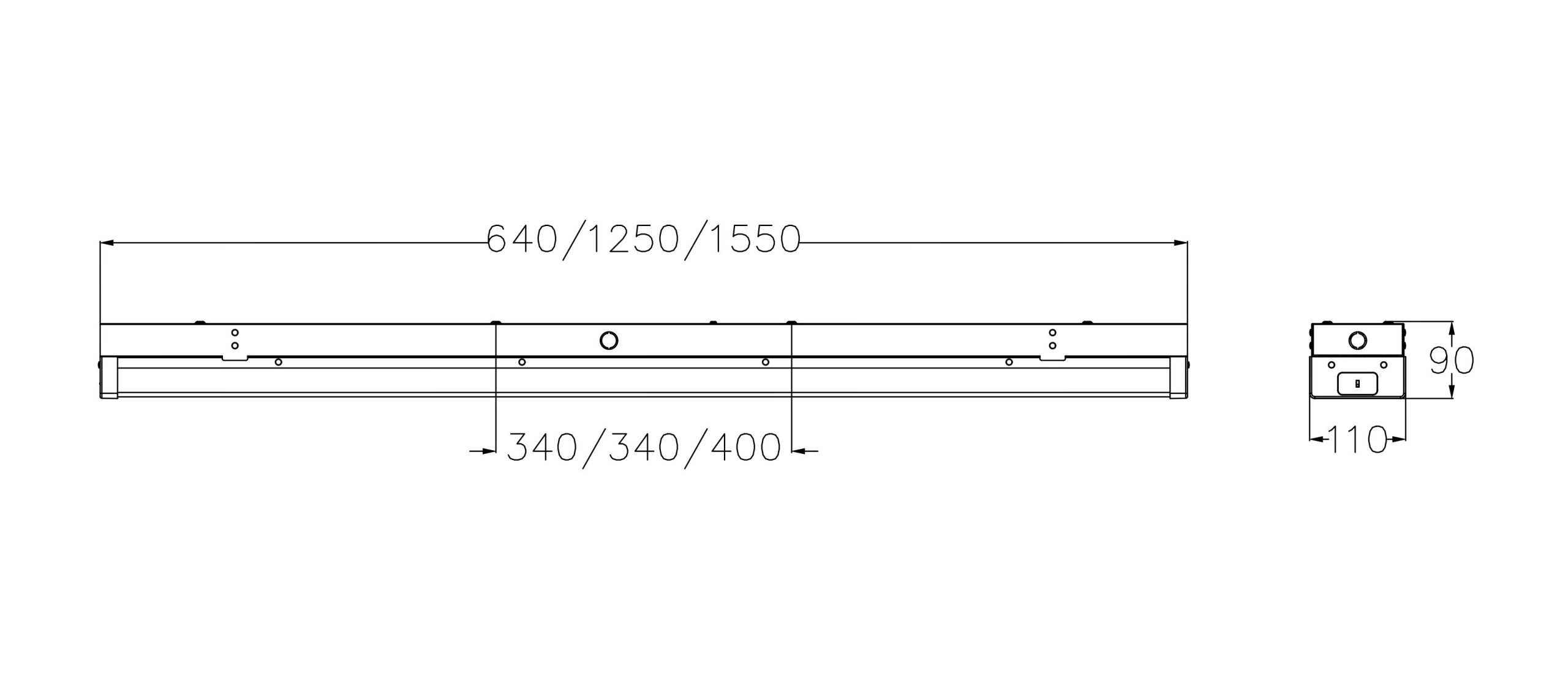

Size Dimension(unit: mm):

LED Emergency Batten with Sensor Installation option

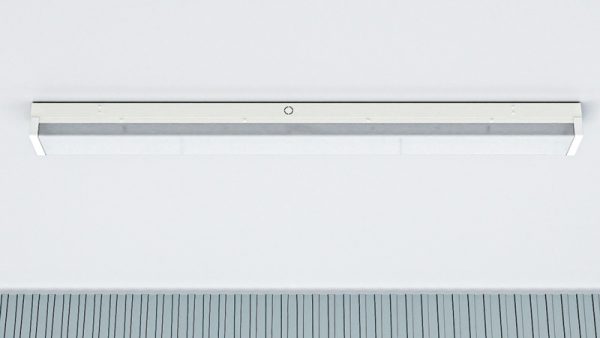

Ceiling Mount

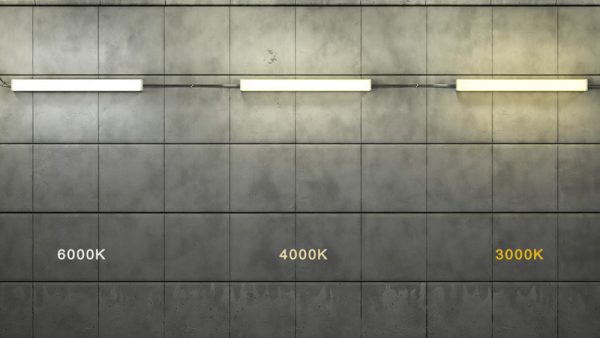

Wall Mount with Linkable



Main Export Markets

US, Europe, The Middle East, Asia



Competitive Advantages of LED Batten Light Fixture Manufacturers

1.Samples/ODM/OEM and customized requirements are available.
2.COMLED Technology is a professional led batten light product and solution provider, dedicated in design, produce and sale led tri proof light for ten years.
3.Factory Region: 2,000 m², Capacity: above 30,000 pieces a month.
4.Each led surface fixture must be under strictly quality controlled and aging tested.



About LED Emergency Batten with Sensor

Low bay lighting refers to lighting solutions installed at lower heights, typically in environments like warehouses, workshops, or garages. When paired with LED technology, such fixtures deliver high levels of brightness with significantly reduced energy consumption compared to traditional lighting. The LED Emergency Batten enhances this concept by incorporating a motion sensor for automatic operation, further improving energy savings. The sensor detects movement and adjusts the light intensity or turns it off when no activity is detected, ensuring the lights are only active when necessary.

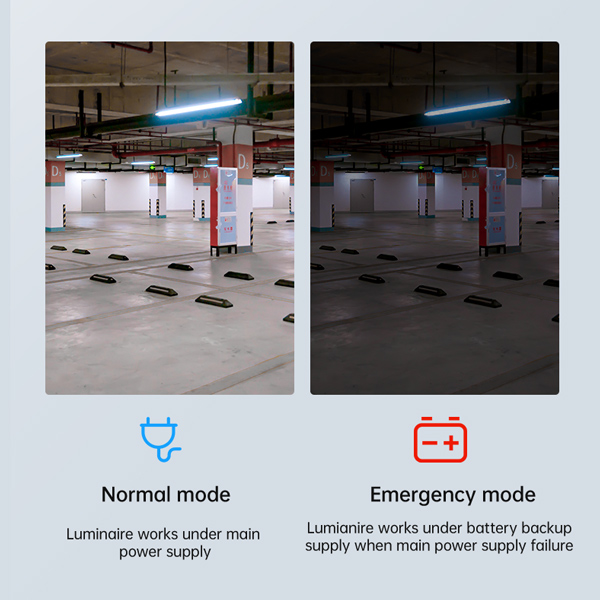

Additionally, this batten light features emergency functionality. In case of a power outage, the emergency mode is activated, allowing the fixture to operate for up to three hours on backup battery power. This feature ensures that critical areas remain illuminated during emergencies, providing safe evacuation routes or operational continuity in commercial or industrial settings.



Conclusion

The LED Emergency Batten with Sensor is a smart, energy-efficient, and dependable lighting solution, particularly suited for commercial and industrial spaces. Its combination of low bay LED linear lighting with sensor technology and emergency backup function makes it a practical choice for those who prioritize both operational efficiency and safety. This fixture not only minimizes energy costs but also ensures that critical areas are properly illuminated during power failures, reducing risks and enhancing productivity.



Related Questions and Answers:

1. What is the difference between low bay and high bay lighting?

Low bay lighting is typically used for ceilings with a height of 12 to 20 feet, while high bay lighting is designed for spaces with ceilings over 20 feet. The LED Emergency Batten with Sensor is a low bay lighting solution, which means it’s ideal for areas like commercial spaces, garages, and industrial workshops with relatively lower ceilings.

2. How does the sensor work in the LED Emergency Batten?

The sensor in the LED Emergency Batten detects movement within its range and adjusts the light’s brightness accordingly. When no motion is detected, the light dims or turns off to conserve energy. This automatic feature is especially useful in areas like storage rooms or corridors, where lights don’t need to be constantly active.

3. What happens during a power outage with this LED Batten?

In the event of a power failure, the LED Emergency Batten switches to its emergency mode, powered by a built-in battery. This allows the light to operate for up to three hours, ensuring continued illumination for safe evacuation or continued work operations in critical areas.

4. Is this LED batten suitable for outdoor use?

Yes, most LED Emergency Battens come with an IP65 rating, which means they are dustproof and water-resistant, making them suitable for outdoor use or in areas exposed to moisture, such as car parks, tunnels, or industrial areas.

5. Can the LED Emergency Batten reduce energy costs?

Absolutely. With the combination of sensor technology and energy-efficient LED components, the LED Emergency Batten significantly reduces electricity consumption. The automatic dimming or shutoff feature further optimizes energy use, resulting in noticeable savings, especially in large commercial or industrial settings.

Additional information

Model	ZL-NSBLP20-2FT/ZL-NSBLP40-4FT/ZL-NSBLP60-5FT
Rated Power	18W/36W/44W
Install	Surface Mount/Suspended/Linkable
Protection Rating	IP20
Housing	Steel with Coating
Optics	Polycarbonate Milky Diffuser
Connection Type	Terminal Block or Linkable
Operating Temperature	-20℃ to 40℃(Emergency version: 0℃ to 40℃)
Warranty	5 Years(battery for 1 year)
Dimming(Option)	Microwave Sensor – 3 Stepped Version(100%-20%-OFF)
Emergency(Option)	3 Hours+ @3.6W LiFePO4 Battery
Luminous Efficacy	110-140lm/w
LED Chips	SMD2835
CCT	3000K/4000K/5000K/6000K
CRI	>80
Beam Angle	120 degree
Input power Supply	AC200-240V, 50/60Hz
Power Factor	0.9
Lifespan@Ta25°(L70)	54,000 hours
Package Dimensions	646*116*96mm/1256*116*96mm/1556*116*96mm
