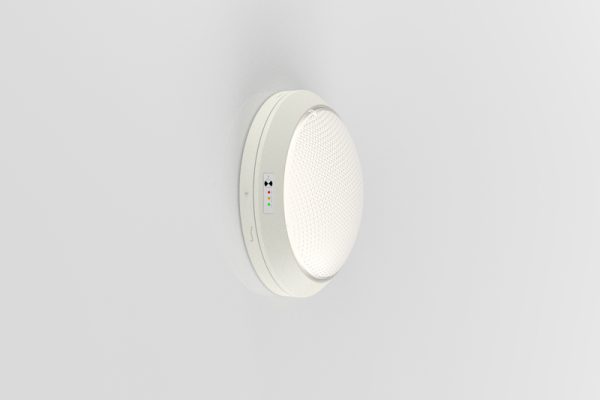

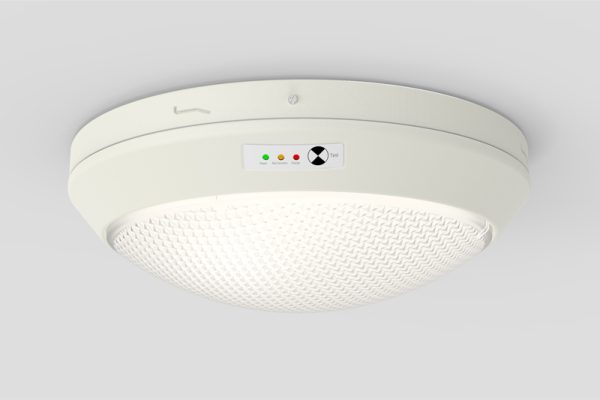

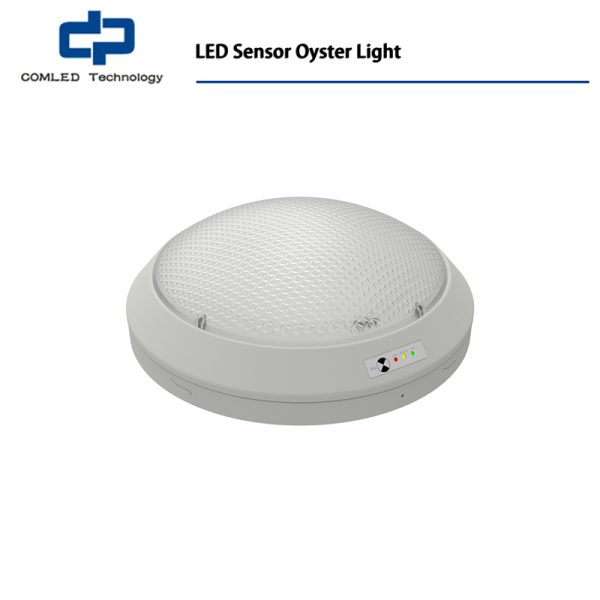

LED Sensor Oyster Light, 18W Dimmable LED Ceiling Light
LED Sensor Oyster Light,Wall or Ceiling Surface-Mounted Fitting, 118LM/W-140LM/W, 3000K/4000K/5000K/6000K, IP65, AC200-240V or AC100-277V, Battery Backup, Round LED Oyster Lamp
- Finish Color : Milky(White)
- Mount Type: Wall or Ceiling Surface-Mounted
- Light Bulb Type: LED
- Category: Ceiling Lights, Emergency & Exit Lights, Shop Lights
- Brightness: 2100 – 4200 lumens
- Shade Material: Polycarbonate (PC)
- Light Fixtue Wattage: 18W / 30W
- Dimensions: 300*100mm
- Style: Oyster Lights
- Decor Style: Modern
- Features: Indoor or Outdoor, Dimmable Sensor, Emergency Function
- Description
- Inquiry
Description
LED Sensor Oyster Light, High Transmittance, Emergency Battery Backup, Sensor Dimming Function, CE SAA and C-Tick Certificate

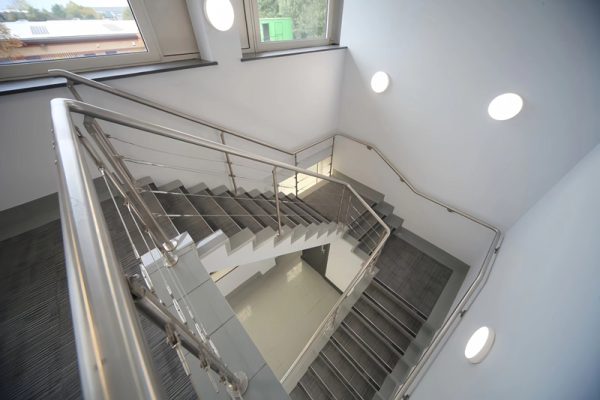

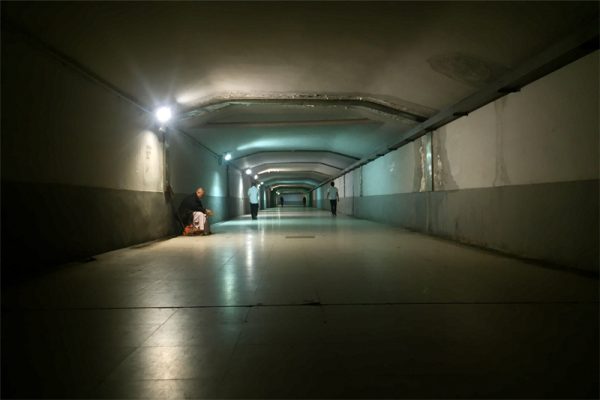

This led oyster ceiling light adopts steel housing and PC diffuser, IP65 IK10 and robust design. It is available in two shapes (CA and CB )with standard, sensor dimming and emergency version options. It widely used in parking lots, warehouse, evacuation passage, toilet, school, Rail-way or Metro tunel, Especially stair well, corridor and basements.
LED Sensor Oyster Light Features
◆ Robust Steel housing with IP65 IK10 rate design.
◆ Anti-Glare diffuser design with high transmittance (90%)（Milky option）.
◆ High Brightness SMD2835 LED chip as light source(approval by LM80).
◆ Divided patented structural design，easy for on site installation.

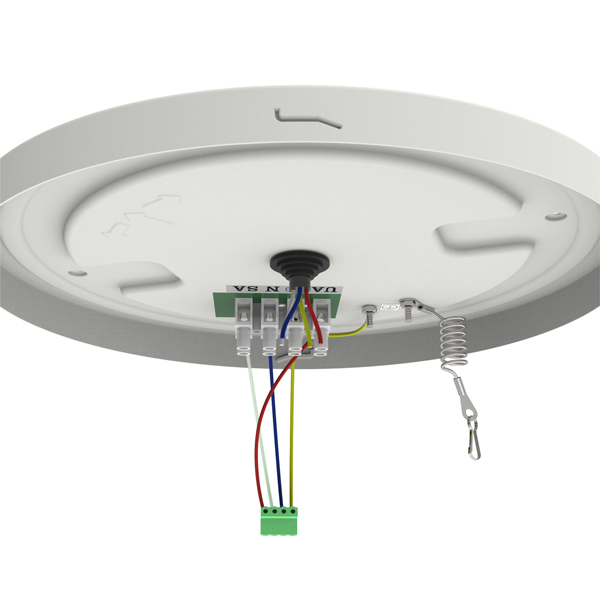

◆ Split type power supply design, easy maintenance without switch power off on site.

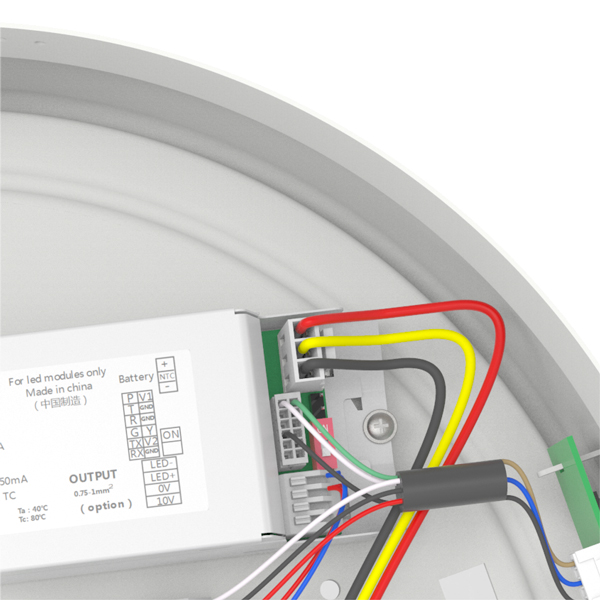

◆ Conpitable with various terminal block for different application wiring.

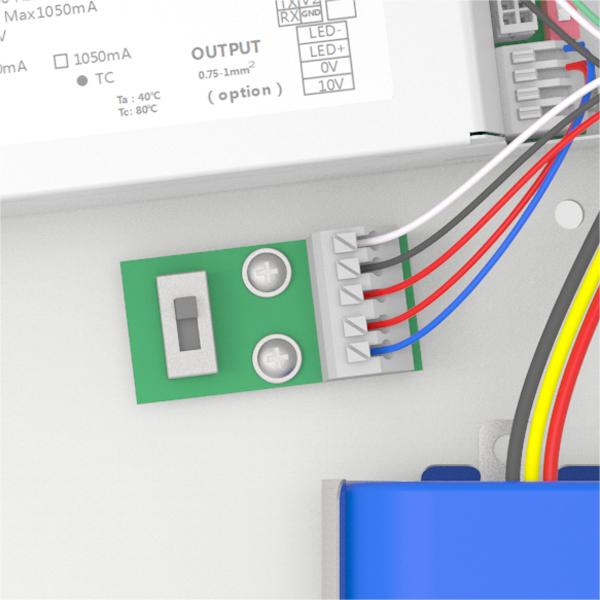

◆ DIP switch available for changing wattage for different application.
◆ 0-10V or PWM dimming function available (option).
◆ 5.8G HF Sensor dimming function (option).

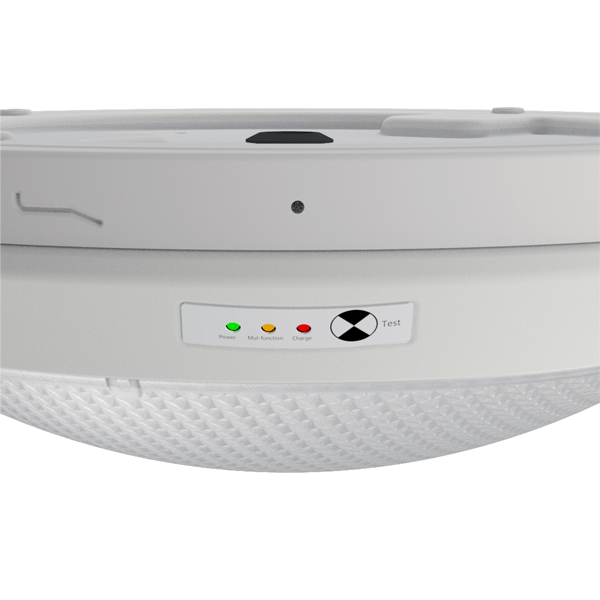

◆ Emergency available with self-test and self-check (option).
◆ Clip-fixed backup battery for easy maintenance.
◆ Approved by FCC,ETL,CE,SAA,AS2293.3,Rosh.
LED Sensor Oyster Light Specification Parameter Data:
| LUMINAIRE INFORMATION | ||
| Model | ZL-CASCLP30-XX | ZL-CBSCLP30-XX |
| Rated Power | 18W / 30W | 18W / 30W |
| Install | Surface Mount | |
| Protection Rating | IP65 | |
| Housing | Steel with Coating | |
| Optics | Polycarbonate Diffuser | |
| Connection Type | Terminal Block | |
| Operating Temperature | -20℃ to 40℃(Emergency version: 0℃ to 40℃) | |
| Warranty | 3 Years(battery for 1 year) | |
| Half-power Function | 18W or 30W can be set by DIP switch | |
| Dimming (Option) | Microwave Sensor – 3 Stepped Version(100%-20%-OFF) | |
| Emergency (Option) | 3 hours+ @3W or 90mins+ @ 7–15W LiFePO4 Battery | |
| PHOTOMETRIC | ||
| Luminous Efficacy | 118-140lm/w | |
| LED | SMD2835 | |
| CCT | 3000K/4000K/5000K/6000K | |
| CRI | 85 | |
| Beam Angle | 120 degree | |
| ELECTRICAL | ||
| Input power Supply | AC200-240V, 50/60Hz or AC100-277V, 50/60Hz | |
| Power Factor | > 0.9 | |
| Useful Life@Ta25°(L70) | 54,000 hours | |
| Electrical Classification | Class I | |
| Dimensions | Ф300*88 | Ф300*100 |

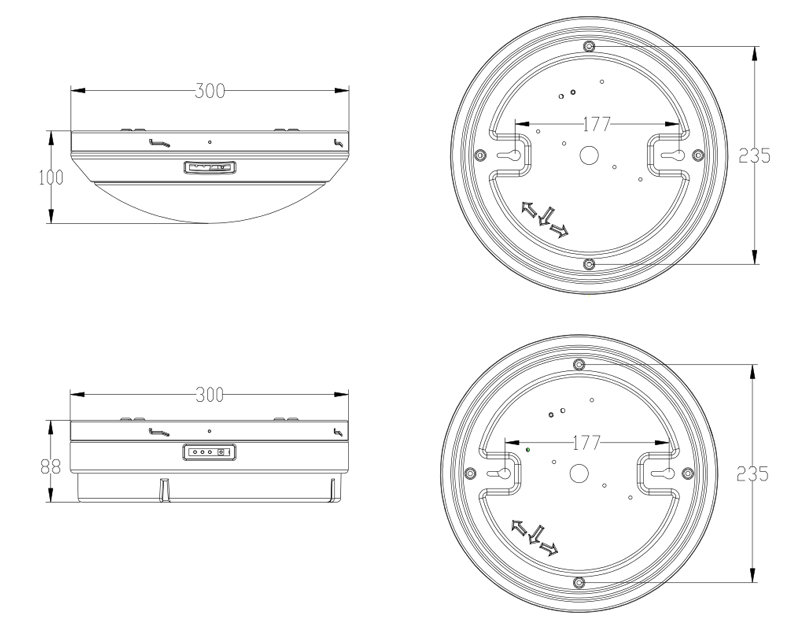

LED Sensor Oyster Light Size Dimension:

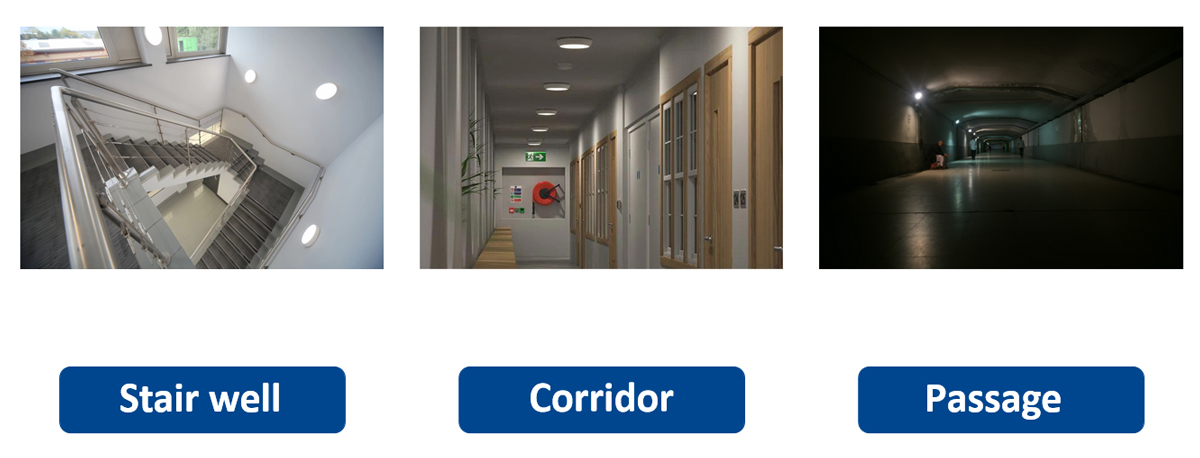

LED Sensor Oyster Light Application

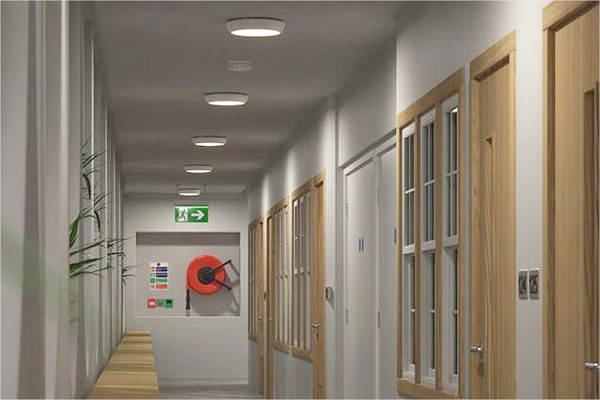

Widely used in indoor restaurants, bathrooms, corridors, balconies, stairwells, supermarkets, shopping malls and so on.
LED Sensor Oyster Light Main Export Markets
US, Europe, The Middle East, Asia
LED Sensor Oyster Light Competitive Advantage
1.Samples/ODM/OEM and customized requirements are available.
2.COMLED Technology is a professional led batten light product and solution provider, dedicated in design, produce and sale led tri proof light for ten years.
3.Factory Region: 2,000 m2, Capacity: above 30,000 pieces a month.
4.Each led surface fixture must be under strictly quality controlled and aging tested.
About LED Sensor Oyster Light
The LED Sensor Oyster Light, 18W Dimmable LED Ceiling Light is a modern, energy-efficient lighting solution designed for both residential and commercial spaces. Its slim, round shape resembles an oyster, giving it a clean and minimalist aesthetic that blends well with various interior styles. This light comes equipped with an integrated motion sensor and dimming function, making it ideal for areas where automatic lighting control and energy efficiency are key considerations, such as hallways, bathrooms, or stairwells.
At the heart of this fixture is an advanced LED chip technology, which offers high luminous efficacy, ensuring bright and even illumination across the room. The built-in motion sensor automatically adjusts lighting intensity based on occupancy, enhancing convenience while reducing power consumption. The sensor can detect movement in a 5-8 meter range, making it particularly useful in low-traffic areas that do not require constant lighting. Additionally, the dimming function provides the flexibility to set different lighting levels, enabling users to create the perfect atmosphere for various environments.
Conclusion
The LED Sensor Oyster Light, 18W Dimmable LED Ceiling Light combines functionality, energy efficiency, and sleek design in one compact unit. Its motion-sensing technology, dimming capability, and durable construction make it a reliable lighting solution for various settings. Whether installed in a home, office, or public building, this light enhances both convenience and cost-efficiency. With its easy installation and low-maintenance design, it’s a smart choice for anyone looking to upgrade their lighting system.
Related Questions and Answers:
1. How does the motion sensor in the LED Sensor Oyster Light work?
The motion sensor in the LED Sensor Oyster Light detects movement within a specific range, typically between 5 to 8 meters. When movement is detected, the light automatically turns on. After a set period of inactivity, it dims or turns off, saving energy when the room is unoccupied. The sensitivity and time delay can often be adjusted based on user preferences or installation requirements.
2. Can the LED Sensor Oyster Light be used in bathrooms or damp areas?
Yes, the LED Sensor Oyster Light has an IP44 rating, which means it is protected against moisture and dust. This makes it suitable for use in areas like bathrooms, kitchens, or covered outdoor spaces. However, it should not be installed in areas with direct water exposure.
3. How does dimming work with the LED Sensor Oyster Light?
The dimmable feature allows users to adjust the brightness levels of the light using a compatible dimmer switch. This offers flexibility in creating different lighting moods and saving additional energy when full brightness is not needed. The light dims smoothly, ensuring a seamless transition between brightness levels without flickering.
4. What are the advantages of using LED technology in the Sensor Oyster Light?
LED technology offers several advantages over traditional lighting, including lower energy consumption, longer lifespan, and better light quality. The SMD2835 LED chips used in this light are particularly efficient, providing high brightness with minimal power usage. Additionally, LED lights do not contain harmful substances like mercury, making them more environmentally friendly.
5. How long will the LED Sensor Oyster Light last?
The LED Sensor Oyster Light is designed to last over 50,000 hours, which translates to years of maintenance-free use. This long lifespan, combined with its energy-saving properties, makes it a cost-effective lighting solution in the long run.
